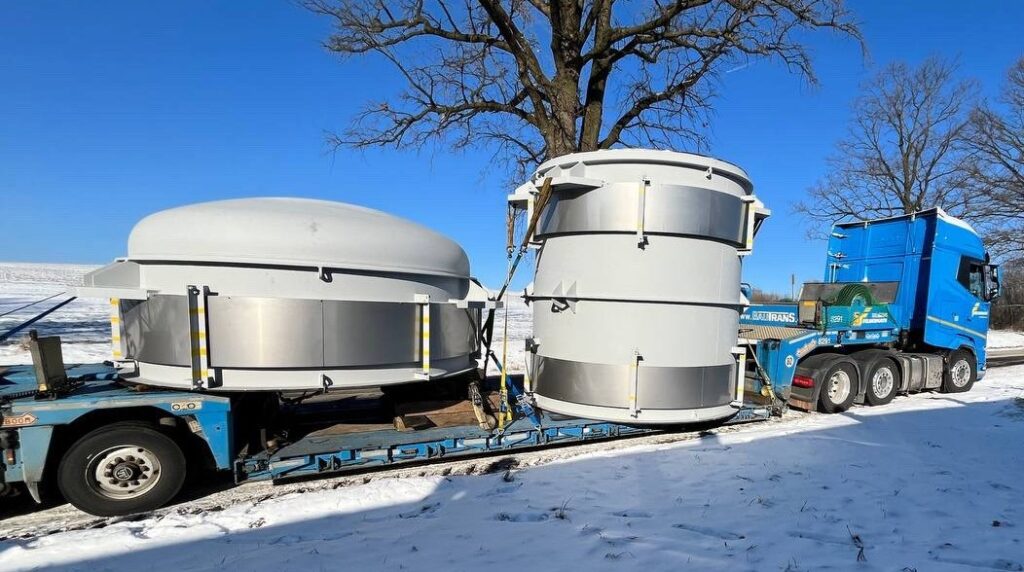

Expansion joints for Energy from Waste
Two gimbal multi-ply expansion joints DN 3200 and two lateral expansion joints DN 2235. One corner relief multi-ply expansion joint DN 3200, segmented version without T-piece. We provided the pipework constructor with the design drawings of the T-piece and the assembly plans to ensure that the end customer receives a tailored and complete module on site.

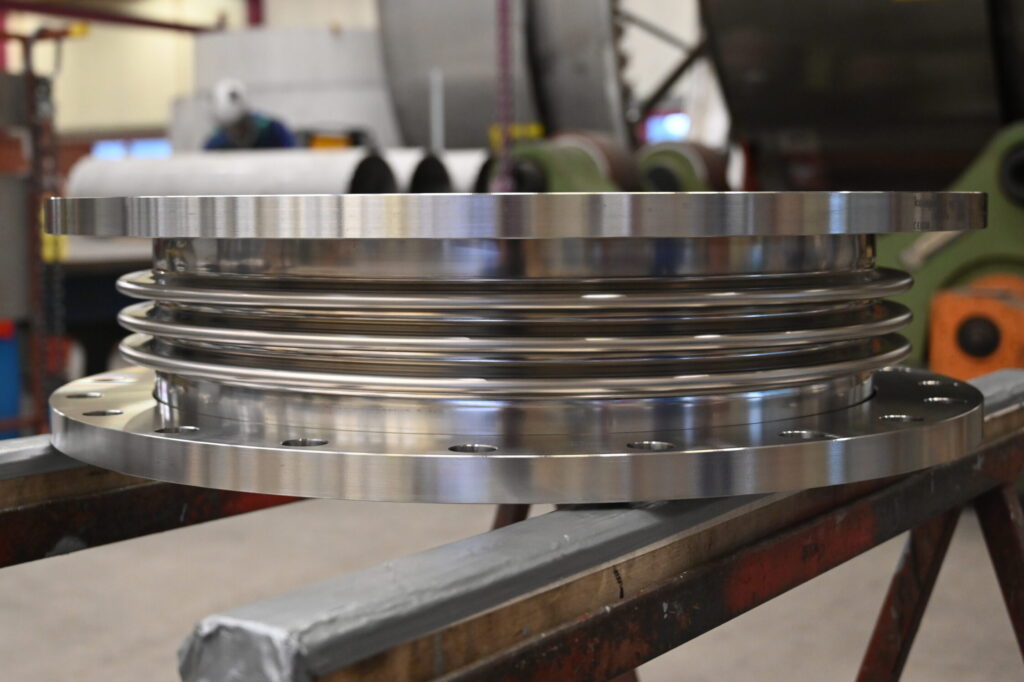

Axial expansion joint DN 600 Hastelloy C22 / Alloy C22
Multi-ply axial expansion joint DN 600 for a manufacturer of pharmaceuticals based in Northern Europe.
Multi-ply expansion joints DN 50 – DN 109
Delivery of over 100 multi-ply expansion joints for a cryogenic magnet in Europe. Design, production, cleaning, testing and documentation of the expansion joints with DN 50 – DN 109.

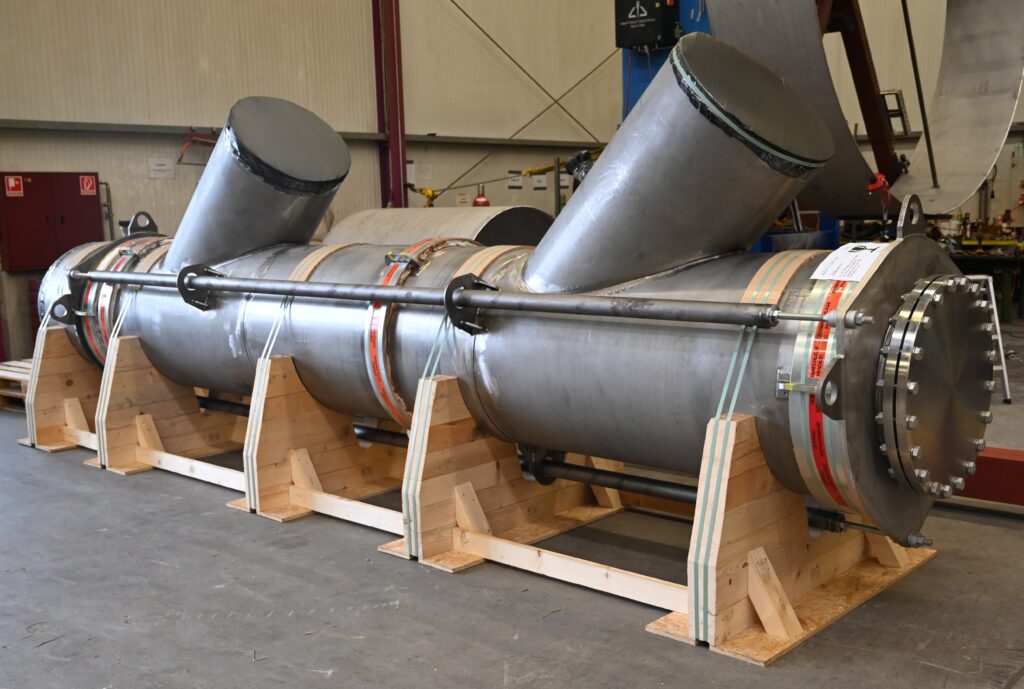

Pressure balanced / corner relief expansion joints
Four multi-ply pressure balanced / corner relief expansion joints for a European provider of nitrogen-based products in the fertilizer and industrial chemical market.

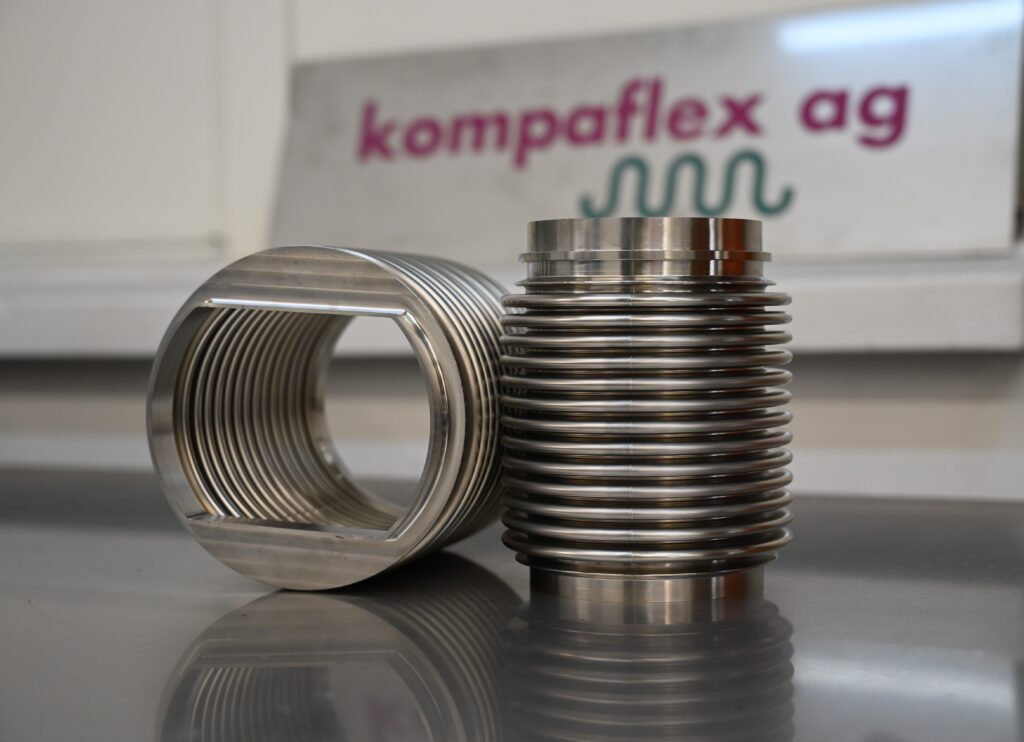

Axial expansion joints for vacuum applications
Single-ply axial expansion joints DN 100 – DN 129. The bellows are used for Ultra high vacuum environment. The bellows have been specially designed for low spring rates with ply thicknesses of 0.15 and 0.2mm, welded and tested at kompaflex in a dedicated clean area.

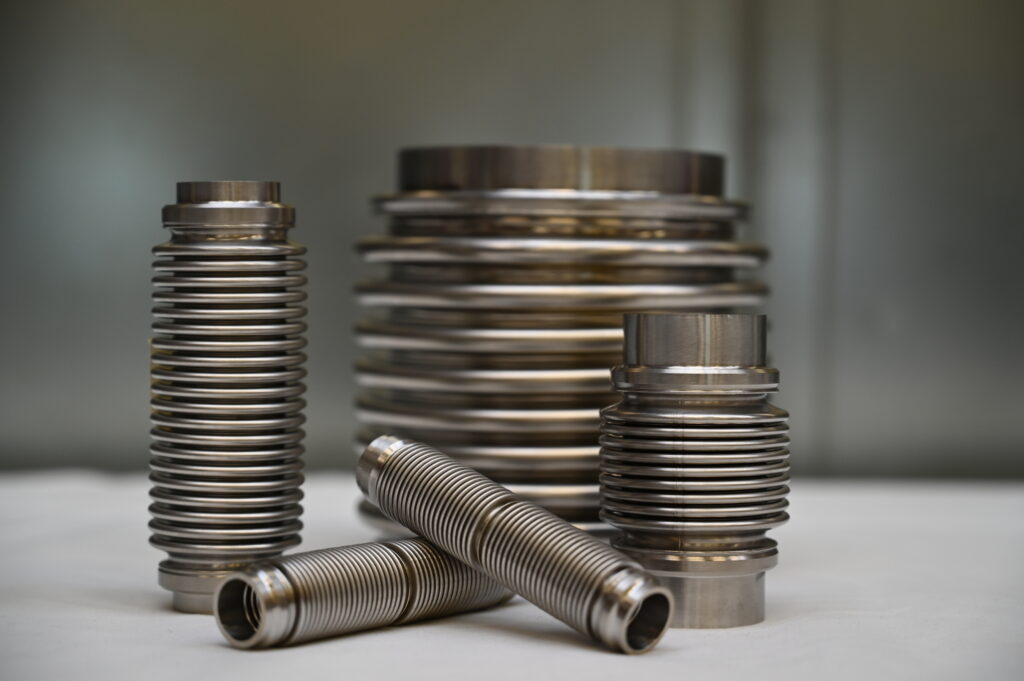

Single-ply axial expansion joints
Single-ply axial expansion joints DN 16 – DN 109. Design and fabrication according to DGRL / PED2014/68/EU.

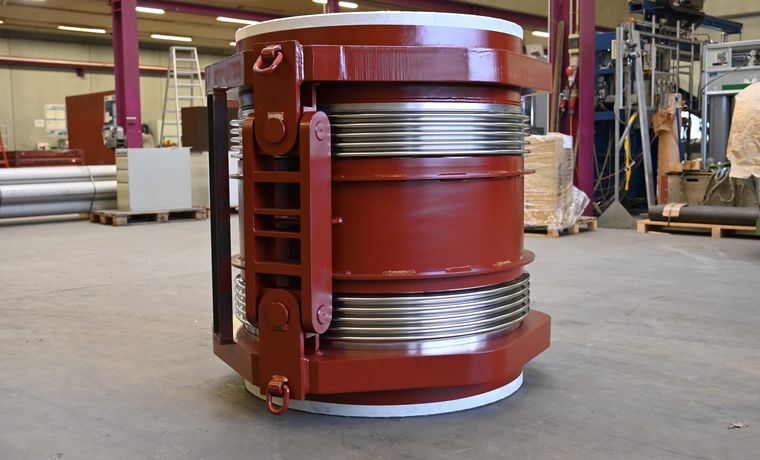

Cross over Lateral Expansion Joint DN 1400
Lateral Expansion Joints movements in all planes. Placed in a cross over pipe of a steam turbine. kompaflex has in this application long-term experience of over 30 years with over 400 cross over pipe expansion joints in the field.
